Heavy Gauge Coil Plate Slitting Machine for over 10mm 35T steel coils

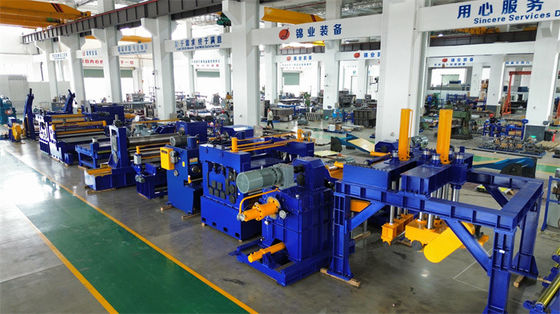

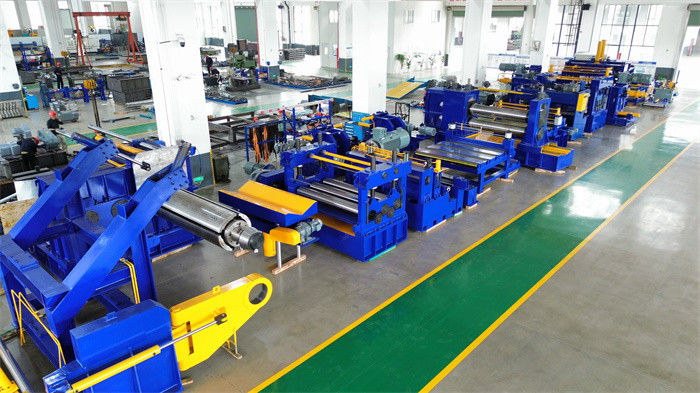

Heavy plate slitting machine is specialized production line used to cut wide metal plates (typically 3mm or thicker) longitudinally into multiple narrow strips. Widely applied in steel processing, ERW pipes making, metal profiles roll forming, shipbuilding, pressure vessel manufacturing, construction machinery, and other industries. We design and make 14 x 2000 carbon steel coil slitting line for Indian market, the whole line is about 200T weight, shipped by 8 containers (two of them are flat racks).
Main Components
Composed of uncoiling section, slitting section and recoiling section, as well as hydraulic/pneumatic/electric system and slitting accessories.
Uncoiling section:

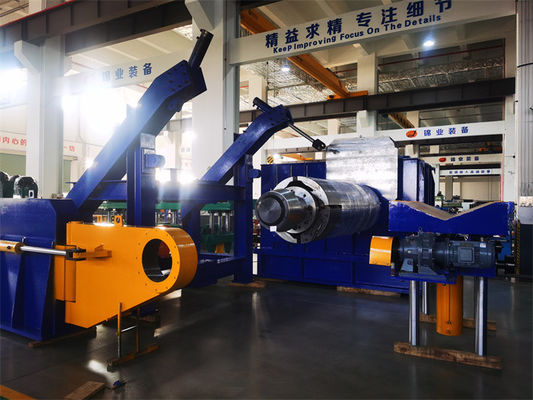

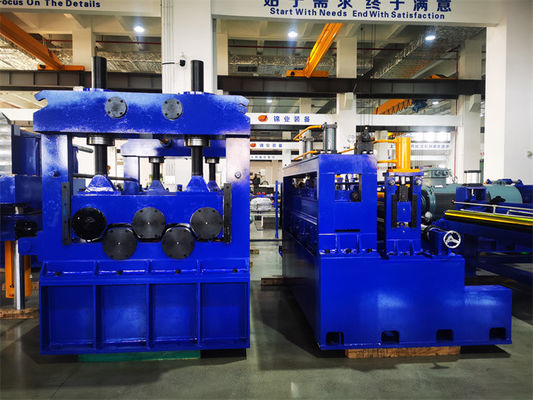

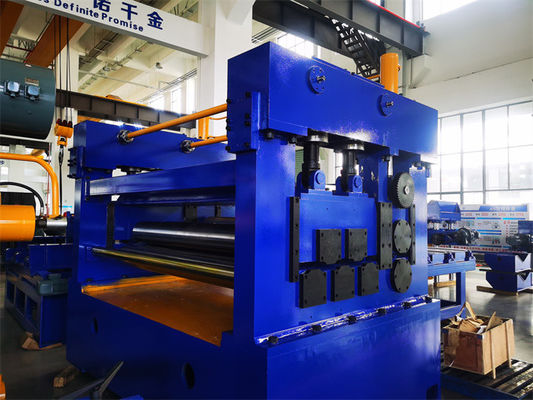

35T coil loading car, 35T double mandrels uncoiler, portal frame coil head opener, double pinch rolls & 5rolls preleveler, coil head shear, first pit loop(transmission roll table)
Slitting Section
Central guide, Slitter (dual ratio shift available), edge trimming and winding, second pit loop
Recoiling section
Pre-separator twice, wool felt plate tension, 5rolls tension, deflection roll, recoiler with press separator, coil unloading car
Hydraulic, Pneumatic and Electric system
Hydraulic station, valve stands and pipelines
Electric drive cabinets, operator panels
Slitting accessories
Slitting knives, spacers, separating discs and spacers, etc.
Parameters:
Slitting capacity
| Thickness |
Max Number of slitting |
Max Slitting speed |
| 13-14mm |
3strips |
30m/min |
| 11 to 12mm |
4strips |
30m/min |
| 8 to 10mm |
6strips |
30m/min |
| 7 to 8mm |
10strips |
40m/min |
| 5 to 6mm |
15strips |
50m/min |
| 2to 3mm |
18strips, 32strips |
60m/min, 40m/min |
Machine Parameters
| |
Item |
Parameters |
| 1 |
Coil preparing saddle, coil-loading car |
35Tload, 4KW walking motor |
| 2 |
Double mandrel uncoiler, |
35T copper coil, 37KW x 2 AC |
| 3 |
Portal Coil-head Press roll, straightening and shoveling device |
7.5KW AC traction, hydraulic actions |
| 4 |
double pinch rolls & 5-roller Leveler and coil head shear |
3KW x 2 + 90KW Φ230/200×2100mm |
| 5 |
Looping1
(transmission table)
|
4m length 2.2m width 4m depth |
| 6 |
Side guide |
800-2000mm hydraulic adjust |
| 7 |
Slitter |
ID360 x OD600 x 20mm
6CrW2Si knife, 250KW
|
| 8 |
Scrap winder or chopper |
11KW x 2 |
| 9 |
Looping 2 |
6m length 2.2m width 5m depth |
| 10 |
Separator, 5rolls Tensioner |
ID130xOD250 x 6mm separating discs, 5rolls motor drive tension |
| 11 |
Recoiler |
350KW AC Ф760mm mandrel |
| 12 |
Coil unloading car |
35T load, 4KW |
| 13 |
Hydraulic system |
12Mpa, 15W |
| 14 |
Electric control system |
Siemens PLC, INOVANCE AC drive
Total power: 700KW
|
Key Features
High Rigidity: Heavy-duty frame and blade shafts withstand high shear forces.
Automation: PLC/CNC controls blade spacing, speed, and tension.
Durable Blades: Coated or replaceable blades extend service life.
Safety: Emergency stop, protective covers, and light curtains.
High productivity: each coil slitting within one hour, 35T x 8 =360T.
